Kaedear Cyber ​​LED Projector Light KDR-K10-W30

[Vehicle inspection compliant Cyber ​​LED spotlight]

The aluminum body with CNC aluminum heat sink structure with excellent thermal conductivity dissipates heat efficiently, ensuring sustained brightness, not just immediately after irradiation (as the LED heats up, it becomes difficult for current to flow through the LED, and brightness drops significantly). The lumen of light is the brightness immediately after lighting, and lights with poor heat dissipation such as die-cast aluminum heat sink structure will reduce the amount of light after the temperature rises.)

[White/yellow switching]

●Switchable between white 6000K (high beam) and yellow 3000K (low beam). Good visibility.

●Remote control compatible with 5 different installation methods. (Memorizes ON/OFF state and lighting color, and can be turned off with key operation)

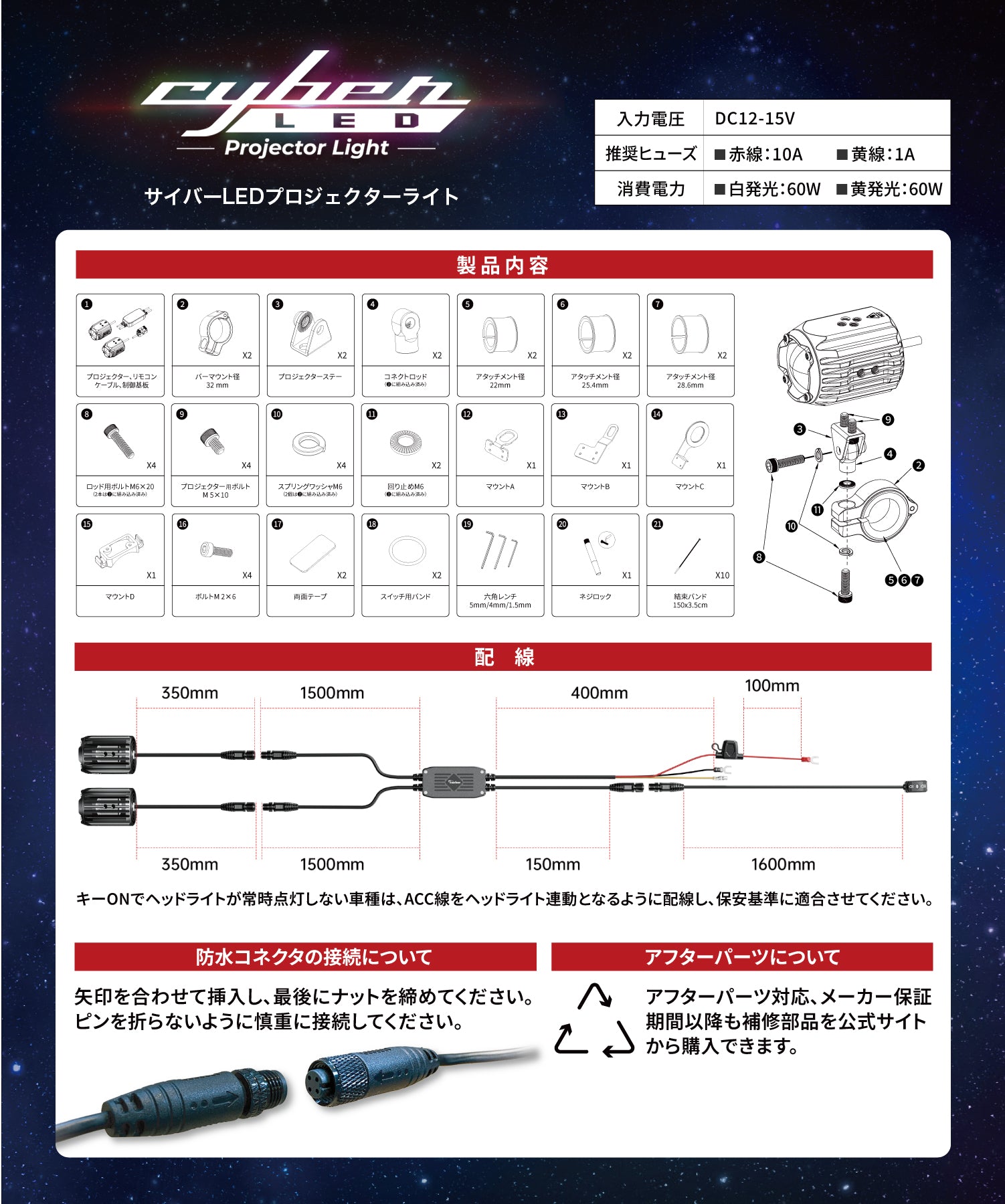

[Contents]

2 projectors, remote control, control board, 2 bar mounts (32mm) , attachments (22 , 25.4 , 28.6mm) , 2 projector stays, 2 connecting rods, rod bolt M6 x 20 , projector bolt M5 x 10 , remote control base bolt M2 x 6 , spring washer M6 , anti-rotation M6 , 3 types of mounts for remote control, remote control base mount, hex wrench 5/4/1.5mm , screw lock, cable tie, double-sided tape, remote control band, screw lock

[Product Details]

■Brightness: 6000 lumens

■Color temperature: White 6000 Kelvin, Yellow 3000 Kelvin

■ Input: 12-15V

■ Output: 30W per side / 60W left and right

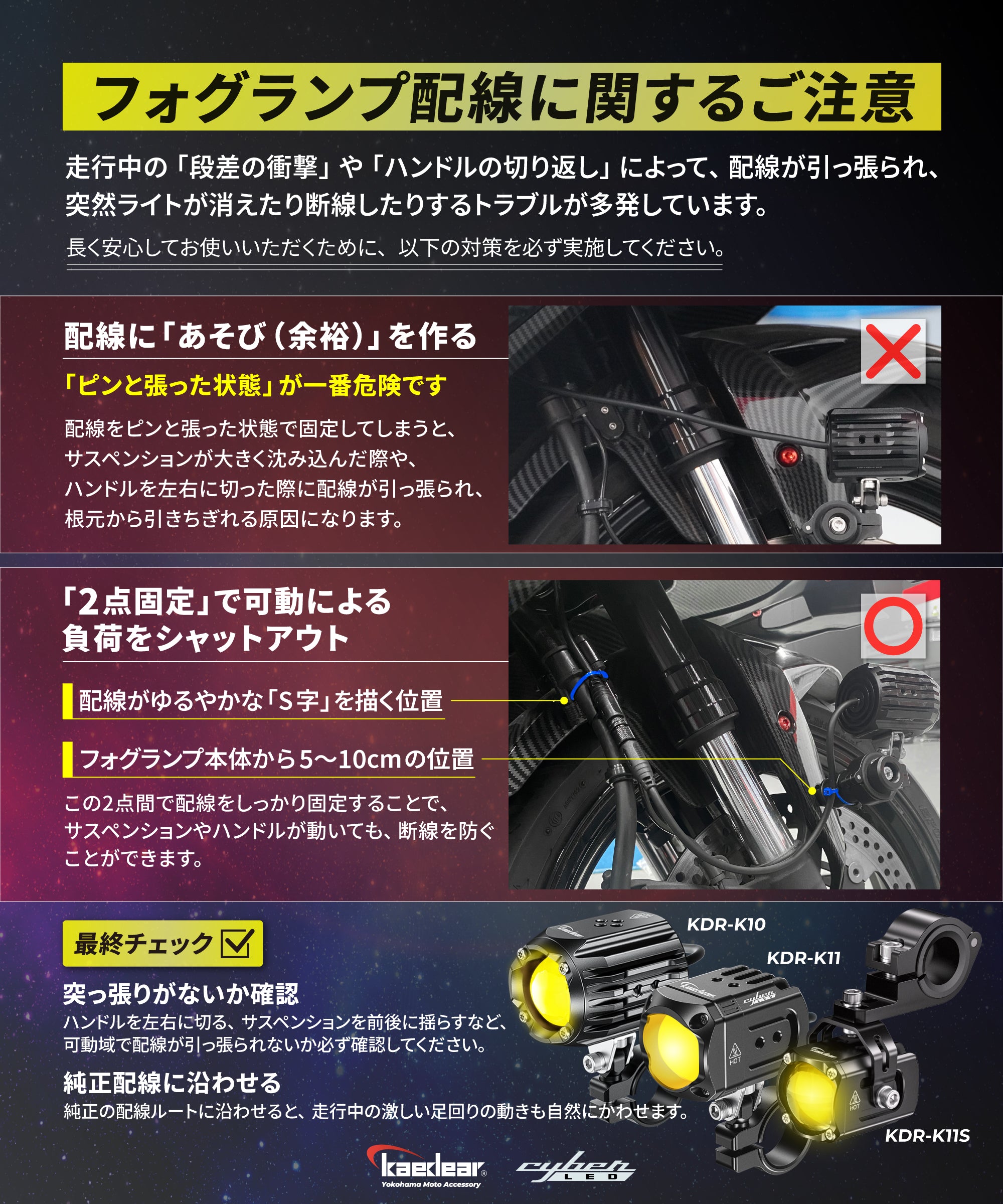

■Wiring: Always positive, ACC, negative (If you connect to the body earth without measuring the resistance, you may consider a voltage drop. Please connect directly to the terminal battery negative.)

■ Operation: When power is applied to the ACC, it will start up in the previous lighting state. (Example: White lighting → OFF → ON → White lighting, Off → OFF → ON → Off)

■Material: CNC aluminum alloy, glass

■ Remote control: <Short press> OFF → ON → Yellow → White → Yellow, <Long press> ON → OFF

■Sports: Hard glass is used (a special glass material with low expansion rate, high heat resistance, high strength, high hardness, high transmittance, and high chemical stability). This makes the lens less prone to yellowing or fourth spots.

■Cut line: Can be used as a wasted light without causing inconvenience to oncoming vehicles.

Bar mount diameter: 32/28.6/25.4/22/mm

■Angle adjustment: 360 degree adjustment in three directions: pitch, yaw, and roll

■ Stay: 4 connection screw holes (separate stays can also be used for fixing)

■Options: Fork clamp bar KDR-H11, Fender clamp bar KDR-H21

■Waterproof level: IP67

■Vehicle inspection compliant: If the product is not installed in the location specified by the safety standards, it may not pass vehicle inspection or you may be subject to penalties when using it, according to the Road Transport Vehicle Act.

■Instruction manual (online only): As part of our efforts to reduce our environmental impact and to achieve decarbonization, we will refrain from enclosing the product in paper form. The instruction manual can be viewed or downloaded from each product page on the Kaedear official website.

[Manufacturer's warranty]

■Manufacturer's warranty period: 1 year (expiration date is the date of purchase and storage)

At Kaedia, we provide after-sales support to ensure customer satisfaction. If you have any questions about the product or how to install it on your bike, our staff are all nationally certified. We have extensive knowledge and can assist with either case . If the problem is diagnosed as being due to a manufacturer's warranty, we will review the matter in accordance with our manufacturer's warranty regulations and repair or replace the product free of charge under the manufacturer's warranty. The warranty period will be half that (for example, if the manufacturer's warranty period is one year, it will become six months, and the expiration date will be the month of purchase plus six months). For details, please see the manufacturer's warranty regulations on the official website. We will provide support even after installation and use. We will provide support with a spirit of hospitality. Please feel free to contact us first.
